Remesh

Access: Open this function from one of the following locations:

Select Mesh > General Tools > Remesh from the menu bar.
Select Remesh from the Mesh Guide Toolbar.

Remesh an existing mesh object to achieve greater equilateral triangulation. This can help to fix or improve mesh objects and also makes them ready to be used in FEA calculations.

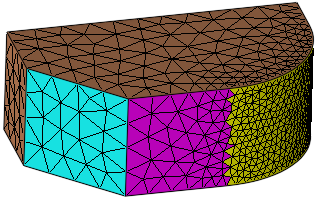

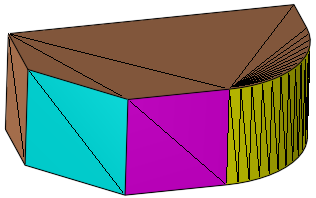

Original Mesh	After a Remesh operation

General Interaction

The following is the Feature Guide for Remesh.

Tip: You can open the Feature Guide at any time by right-clicking the mouse in the graphic display area.

Required Step 1 : Pick mesh object(s) or facets (depending on the Global or Local option selected respectively) and define the parameters.

Detailed Interaction

See Options and Results.
