Remove & Extend

Access: Open this function from one of the following locations:

  • Click the button in the toolbar.

  • Select Solid > Main Tools > Remove & Extend from the menu bar.

Remove faces and extend adjacent faces to fill the gap.

This function can be used to:

  • Automatically select all adjacent smooth faces.

  • Remove round corners, extend the adjacent faces and create sharp corners instead.

  • Remove holes.

  • Heal faces that were previously split.

  • Extend adjacent faces.

  • Add cap faces.

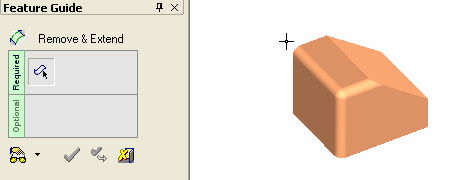

Demo: Press the button below to view a short movie demonstrating the function:

Practice: Press the button below to open Cimatron with a practice ELT file similar to that used to create the movie (if the relevant feature already exists in the ELT file, you can either edit it or delete it and create a new feature).


General Interaction

The following is the Feature Guide for Remove and Extend.

   Tip: You can open the Feature Guide at any time by right-clicking the mouse in the graphic display area.

Required Step 1 : Pick the faces of the solid object to be removed.

Detailed Interaction

See Options and Results.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
