Resize Rounds
Access: Open this function from one of the following locations:
-
Click the
button in the toolbar. -
Select Solid > Main Tools > Resize Rounds from the menu bar.
Resize round faces directly, instead of removing them and creating new features.
Resize Rounds can be applied to any series of round faces, even those that are not truly cylindrical. The function measures and displays the current value of the round, then offers different ways to modify it. You can either define a new radius value, or choose to enlarge or reduce the current round by a specific value. This offers significant time-savings compared with manually removing rounds and replacing them with new features.
|

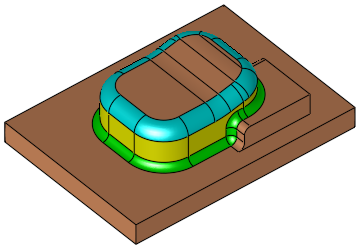

Blue rounds faces to be resized: |
Blue faces selected, resize defined; job performed in one operation. |
|
|
|
General Interaction
The following is the Feature Guide for Resize Rounds.
|
|
|
Tip:Required Step 1
: Pick the faces and then <exit><exit>.
Required Step 2
: Define the parameters.
Detailed Interaction
See Options and Results.
|
