Skin (Face)
Access: Open this function from the following location:
-
Select Faces > Create Faces > Skin from the menu bar.
Create a surface that interpolates a series of sections with a guide curve.
A surface is fitted between the picked sections. When skinning with a guide curve, one or more 3-space curves can be specified between the skinning sections, and the surface will follow the guide curves. The surface will be C1 continuous at every point, even across the guide itself.
|

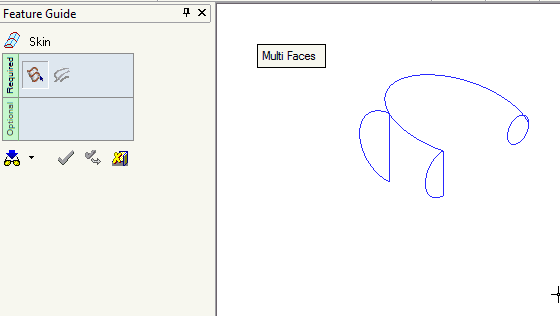

Demo: Press the button below to view
a short movie demonstrating the function:
|
Practice: Press the button below to open Cimatron with a practice ELT file similar to that used to create the movie (if the relevant feature already exists in the ELT file, you can either edit it or delete it and create a new feature). |
|
|
|
Notes:
-
For Surface Skin, the sections can be open or closed, 2D or 3D.
-
The sections do not have to be C1 continuous.
-
The guide curves must touch each profile in the skinning list.
-
Picking the guide curves must be done successively.
-
Any number of guide curves can be added.
-
The guide curves need not be consistent in the v direction.
-
The guide curves must be non-looping and well-behaved.
General Interaction
The following is the Feature Guide for Skin.
|
|
|
Tip:Required Step 1
: Pick the sections to be skinned.
Required Step 2
: Pick the guide curves.
Detailed Interaction
See Options and Results.
|
