Unite (Merge Mesh)

Access: Open this function from one of the following locations:

Unite selected objects into one mesh object.

At least one of the selected objects must be a mesh; the united object is also a mesh.

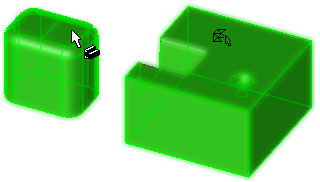

Two separate objects, a B-rep on the left and a mesh on the right:

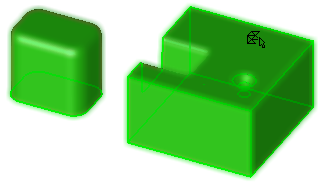

The objects are united as a single mesh object:

General Interaction

The following is the Feature Guide for Unite.

   Tip: You can open the Feature Guide at any time by right-clicking the mouse in the graphic display area.

Required Step 1 : Pick the objects to be united, and if necessary, indicate the outside direction.

Detailed Interaction

See Options and Results.
