Unite Mesh : Options and Results

At least one of the selected objects must be a mesh; the united object is also a mesh.

Required Step 1

Pick the objects to be united, and if necessary, indicate the outside direction (a direction arrow is displayed). If one of the selected objects is an open object, the direction arrow is displayed.

At least one of the selected objects must be a mesh; the united object is also a mesh.

Note: If a closed mesh object is selected, all previous selections of open solid objects are cleared.

The following parameter is displayed:

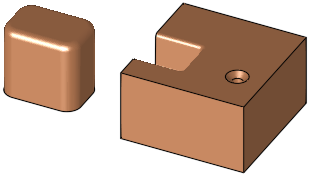

			Two separate objects, a B-rep on the left and a mesh on the right:

From the dropdown list, select the type of unite operation to be performed.

Merge	Merge the selected objects using boolean operations. This is the default option.
Combine	Combine the selected objects using non-boolean operations. This option may improve the results for mesh closing operations. If the resulting mesh object is self-intersecting, a message is displayed.
Glue	Unite the selected objects when they are almost coincident with each other (where there are small gaps between the objects). When the Glue option is selected, the Tolerance parameter is displayed: Set the required Tolerance. Default = 0.1 mm (0.005 inch) Min. = 0, Max. = 5 mm. Example:Example: The examples below show two mesh objects coincident with each other, within the defined Tolerance. Two mesh objects: Select both objects and press OK in the Feature Guide. The two objects are united into one mesh object.

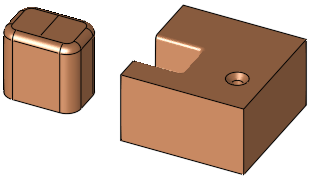

In the example below, the two objects are separate; the left object is a B-rep, the right object is a mesh.

Press OK or Apply in the Feature Guide to complete the function. The two objects are now united into one mesh object.

When completed, the Unite(Merge) feature will appear in the Feature Tree as follows:

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
