Data To Steel

ECO Basic

ECO in a Parting Project: Add a Copy of Master File to the ECO Assembly

Open a New Parting Project

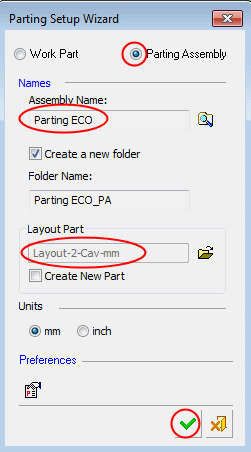

  1. Open a new parting projectOpen a new parting project. Name it Parting ECO.

  2. Use the layout (Layout-2-Cav-mm.elt) located in the Exercise folder.
    Place it first in the following Cimatron folder:

  3. Click OK and Save the file.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
