Add Part Material: Electrode Wizard

Access: Open this function from one of the following locations:

Click the Electrode Setup Wizard button from the initial toolbar, or
Select Tools > Setup Wizards > Electrode Setup Wizard from the initial menu bar.

A Part Material can be defined in the Cimatron Electrode Setup Wizard using the Component Part Material pulldown menu to select a material from the Cimatron Global Material Library.

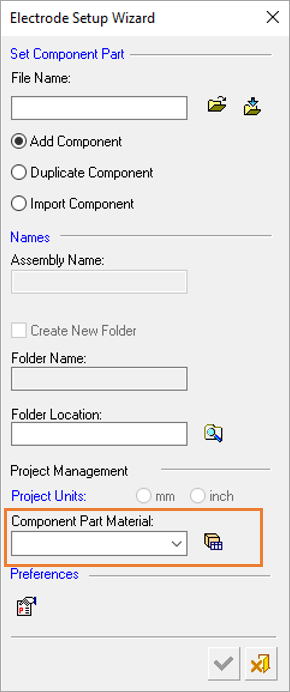

Electrode Setup Wizard Dialog - General Interaction

General Interaction

Open a Cimatron Part or Assembly file.
InvokeInvoke(click on the Access button above for instructions) the Electrode Setup Wizard.
Navigate to the Component Part Material pulldown menu to select a material from Cimatron's Global Material Library.

Note: If the part file has a material already defined, the Component Part Material pulldown menu will not be accessible (the selection will be grayed out). B y default, the material value is taken from the part.
PickPick (left mouse button) the OK button to approve the selected options.

Detailed Interaction

See Options and Results.
