All Drawings

Access: In the Electrode Tree, select the UCS or one or more of the Electrodes or Electrode Locations and then invoke this function from one of the following locations:

  • Select Electrode > Drawings > All Drawings from the menu bar

  • Right-click in the Electrode Tree to display the popup menu and then select All Drawings.

Create an assembly drawing and one or more electrode drawings for the selected electrodes (the selected locations under the UCS in the Electrode Tree). This function is available only when the assembly is active.

Create all drawings

  1. Activate the electrode assembly.

  2. Select the appropriate position in the Electrode Tree.

  3. InvokeInvoke (for more, click Access at the top of this Help topic) the Create Electrode Drawing function.

Depending on the number of electrode locations and your selection point in the Electrode Tree, the assembly drawing may contain one or more electrode locations in the drawing, and one or more electrode drawings are created - see below.

Selection Point in the Electrode Tree

The drawings created by running this function depend on the number of electrode locations and your selection point in the Electrode Tree:

  1. If you select the UCS in the Electrode Tree and then run the function, the result is as follows:

    • a single assembly drawing is created showing all the electrode locations under the UCS.

    • an electrode drawing is created for each electrode location under the UCS.

For example:

Note: The prefix of the assembly and electrode drawing file names consists of the names of the assembly and electrode(s) respectively.

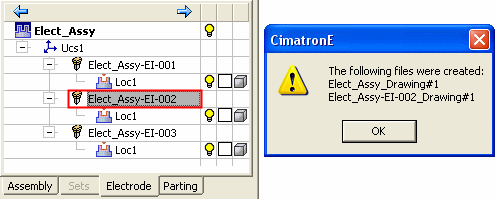

  1. If you select an Electrode or Electrode Location in the Electrode Tree and then run the function:

    • the assembly drawing shows only that electrode location .

    • one electrode drawing is created for that electrode location .

For example:

Note: If an assembly or electrode drawing file with the same name already exists. the drawing name is appended with the suffix #<n> (where <n> is the number of the files with the same name).

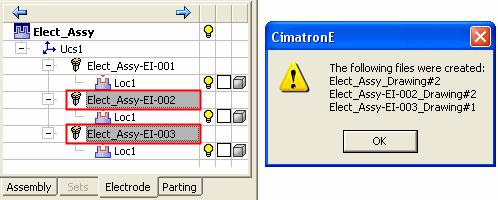

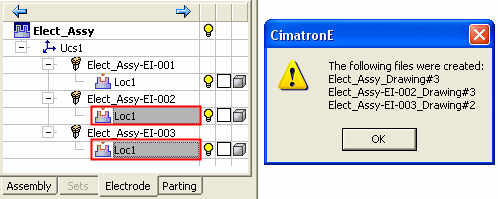

  1. You can also select multiple Electrodes or Electrode Locations in the Electrode Tree and then run the function. In this case:

    • the assembly drawing shows each of the items selected.

    • an electrode drawing is created for each item selected.

For example:

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
