Copy Style: Drafting

Select a source entity and define which of its attributes to copy to a selected target entity. This function is available in the Modeling and Drafting environments; the interaction differs slightly between the environments.

See:

Copy Style

Copy Style - Drafting

Note: This function has no Undo.

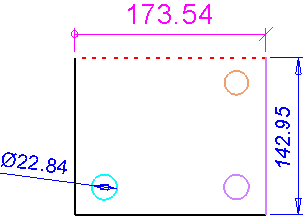

The following entities are used in this function explanation:

Required Step 1

Pick the source entity; this is the entity whose style/attributes you wish to apply to another entity.

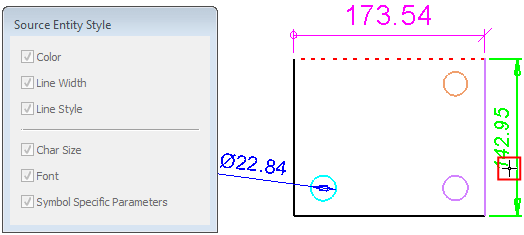

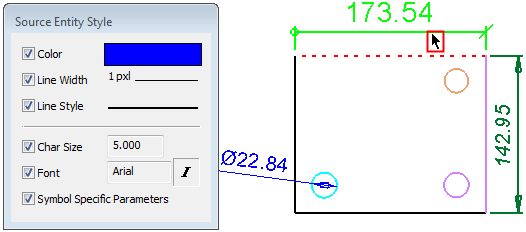

The Source Entity Style dialog is displayed grayed out. In the example below, a source (reference) entity is selected (in this case a Linear Dimension):

Once an entity is selected, the system switches to step 2.

Required Step 2

Pick the target entities and <exit><exit>(middle mouse button) to apply the changes.

The Source Entity Style dialog displays the styles copied from the source entity; use the checkboxes to select or discard the styles to be applied to the target entities.

Pick the target entities (the entities whose styles you wish to change). Note that in the example dialog below, all the parameters are available to be set; however, when a parameter is not relevant to the copied entity, it will appear as grayed out and empty in the Source Entity Style dialog (e.g., Char Size is not relevant if the source entity is a line, hence the parameter will be grayed out).

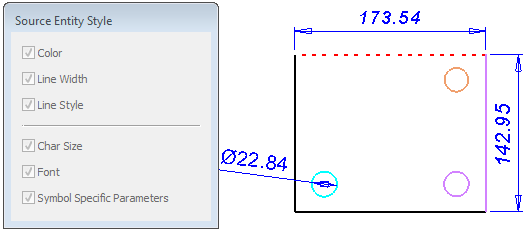

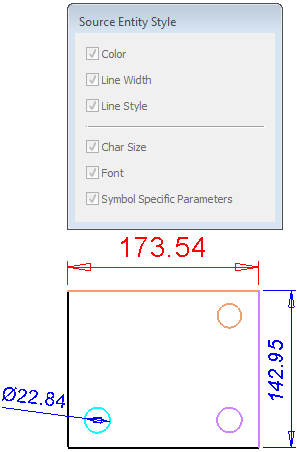

<Exit><Exit>(middle mouse button) to apply the changes. The target entity acquires the relevant styles copied from the source and selected in the Source Entity Style dialog. In the example below, this also included the terminator types - see Parameters below.

If the Copy Style operation is complete, press Exit in the Feature Guide. See the additional examples below.



Parameters

Most of the parameters in the Source Entity Style dialog are self-explanatory; for example, when checked ON, the Color and Line Style parameters copy the Color and Line Style of the source entity to the target.

By default, all the parameter checkboxes are ON (selected).

Symbol Specific Parameters: This parameter is only relevant if the source and target entities are of the same type. For example, if they are both Geometrical Datums or, as in the above example, both Linear Dimensions. When checked ON, this parameter copies all the other parameters of the source entity that are not displayed in the Source Entity Style dialog (such as Tolerance, Terminator Type, Units, etc.) but that are relevant to the target entity. These other parameters are copied ONLY if the source and target entities are of the same symbol type.

Notes:

• In the Drafting environment, when an item is not relevant to the copied entity, it will appear as grayed out and empty in the Source Entity Style dialog. See the examples below.

• This function has no Undo.

Additional Examples

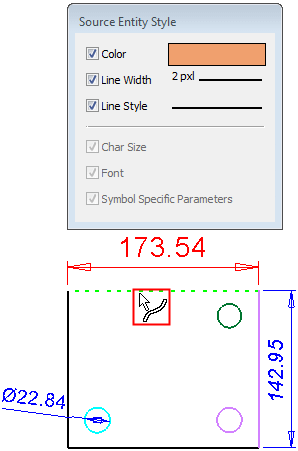

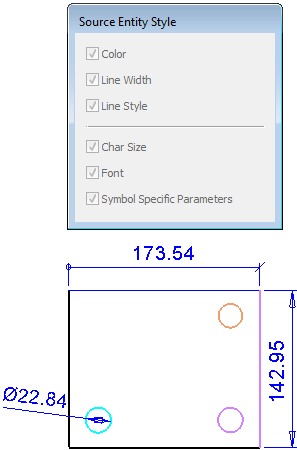

Step 1: Source line is selected.	Step 2: Target line is selected. Note that when an item is not relevant to the copied entity it will appear as grayed out and empty in the Source Entity Style dialog. In this case, the character related parameters are not available.	Result: The target acquires the relevant styles from the source.

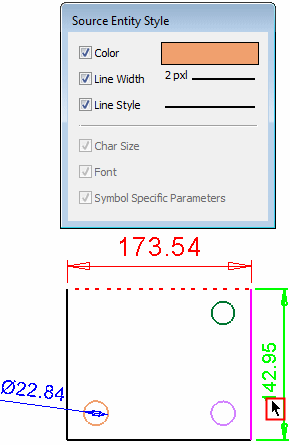

Step 1: Source line is selected.	Step 2: Target dimension is selected.	Result: The target acquires the relevant styles from the source. Note that the character size and font type of the target remain unchanged, as these parameters were not relevant to the selected source entity and, hence, greyed out in the dialog.

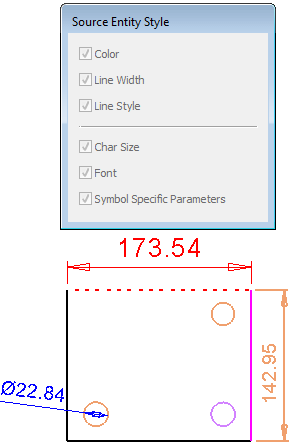

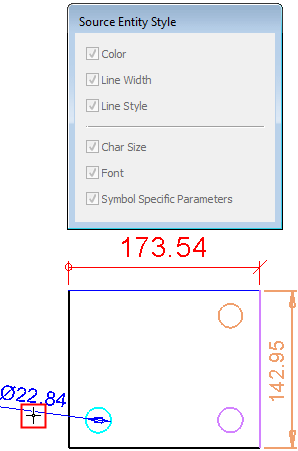

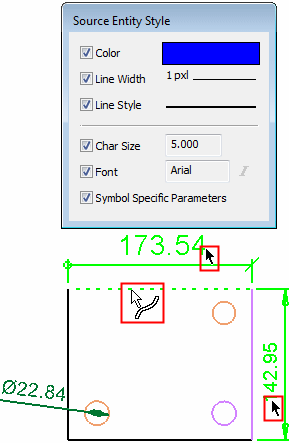

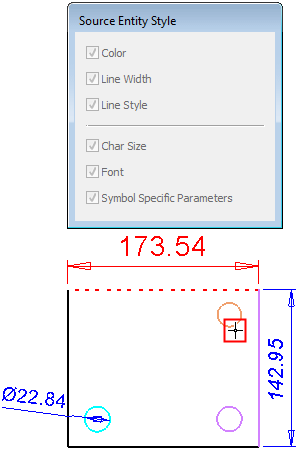

Step 1: Source dimension is selected.	Step 2: Multiple targets of different types are selected. Note that the "Symbol Specific Parameters" is ON.	Result: The target acquires the relevant styles from the source. Note that in this example, the "Symbol Specific Parameters" option has not changed the terminators of the top linear dimension. This is because the source and target entities were not of the same type (the targets are linear dimensions, the source is not).

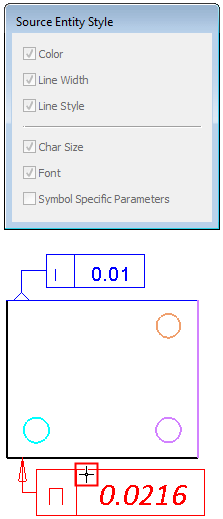

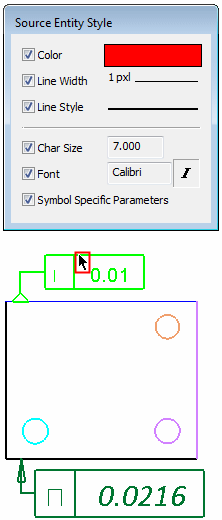

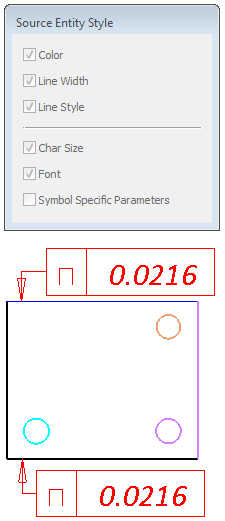

Step 1: Source geometrical tolerance is selected.	Step 2: Target geometrical tolerance is selected. Note that the "Symbol Specific Parameters" is ON.	Result: The target acquires the relevant styles from the source. Note that in this example, the "Symbol Specific Parameters" option has changed the terminator, tolerance and precision of the target. This is because both the source and target entities were of the same type.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
