Corner

Access: Open this function from one of the following locations:

  • Select Wireframe > Derived Curves > Corner from the menu bar.

  • Select Curves > Corner from the following Die Design Guides: Strip Design.

Create a sharp, round, or chamfer corner between curves.

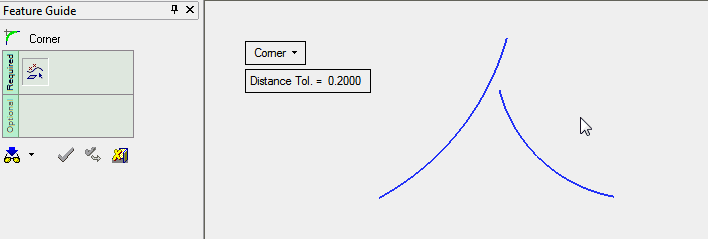

Demo: Press the button below to view a short movie demonstrating the function:

Practice: Press the button below to open Cimatron with a practice ELT file similar to that used to create the movie (if the relevant feature already exists in the ELT file, you can either edit it or delete it and create a new feature).





General Interaction

The following is the Corner Feature Guide.

   Tip: You can open the Feature Guide at any time by right-clicking the mouse in the graphic display area.



Required Step 1 : Pick the 1st and 2nd curves to create the round, sharp, or chamfered corner as required.

Detailed Interaction

See Options and Results.



Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
