Customizing Toolbars and Menus
Access: Open this function from one of the following locations:
-
Select View > Customize > Customize Toolbars & Menus from the menu bar.
-
Right-click anywhere in the menu bar or toolbar and select Customize Toolbars & Menus.
Customize Cimatron toolbars and menus, as required, so that functions that you use more often are more readily accessible.
The Cimatron menus and toolbars can be customized so that you can display or hide any number of functions or commands, menus, and toolbars and define which functions appear in each menu, toolbar, and guide bar.
In addition, you can create your own customizable menus and toolbars containing any selection of commands or functions. The changes made to the menu bar are saved for each file type (Part, Assembly, Drafting, or NC Manufacturing).
Note: Menus, toolbars, and guide bars can be saved as Customization Profiles into a *.cui file that can be distributed to other users. These Customized Profiles can then be loaded by users to achieve a standardized working environment.
When the Customization function is invoked, the system is in Customization Mode, which means that all the above mentioned customization operations are possible. Menu customization can only be performed while in Customization mode; however, some toolbar customization can be done while not in Customization Mode, such as:
Changing the setting of a toolbar from a double to a single row, and vice versa.
Dragging toolbars to another location, whether horizontal or vertical docking.

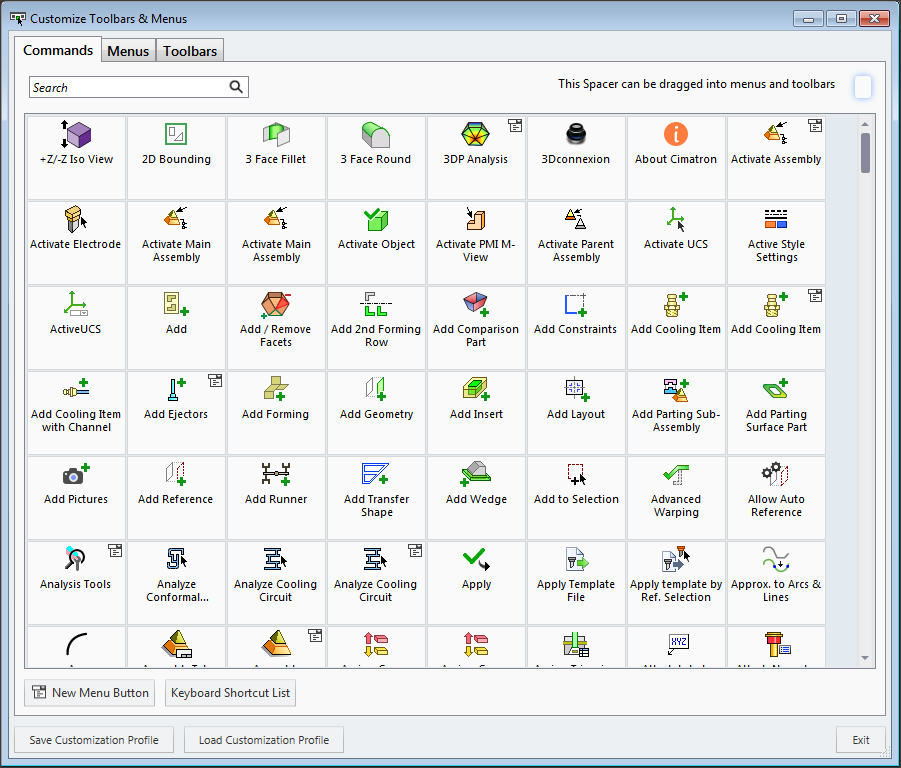

When the customization is invokedinvoked, the Customize Toolbars & Menus dialog is displayed, enabling numerous customization options:
|
|
See also |
|
In the Commands tab, you can create customized menus, toolbars and guide bars containing any selection of commands or functions. |
|
|
In the Menus tab, you can define how menus are to be displayed and also their contents. |
|
|
In the Toolbar tab, you can define which toolbars are displayed, from a list of toolbars relevant to your current working environment (Assembly, Part, Drafting, NC). |
|
|
Create a new menu button in the Customize Toolbars and Menus dialog. |
|
|
Display a dialog showing all existing customized keyboard shortcuts. |
|
|
Cimatron enables you to save your workspace settings as a Customization Profile to a CUI (*.cui) file for backup purposes. These files can then be retrieved by Loading Customization Profiles. The *.cui files are stored by default in the following folder: |
|
|
Load previously defined customization profiles from the following default folder of your installation: |
|
|
Exit |
Exit: Exit the operation and close the dialog/task. |
Additional Operations in Customization Mode
While in Customization Mode, besides using the Customize Toolbars and Menus dialog, menus and toolbars can also be customized as follows:
Menus can be dragged so that they can be reordered.
Sections of menus can be dragged to be reordered up and down within the same menu.
You can drag any command from the Customize Toolbars and Menus dialog, from a menu or toolbar, to any menu or toolbar, including the Quick Access Toolbar and the Floating Toolbar.
If you drag with the CRTL key pressed down, the command is copied not moved.
If a command is dragged from the Customize Toolbars and Menus dialog to an area outside of the menus, toolbars, Quick Access Toolbar, or Floating Toolbar, the cursor displays a X (as shown below) and the command is not added anywhere.
If a command is dragged from a menu or toolbar to an area outside of the menus, toolbars, Quick Access Toolbar, or Floating Toolbar, the cursor displays a X (as shown below) and the command is removed.
When moving a command and placing it in a section (of a menu), the insert position is highlighted by a stripe as shown below:
Right-clicking on a menu command displays the following options, enabling you to add a separator before the command to remove the command or to add a new line before the command:
Right-clicking on a toolbar command displays the following options, enabling you to display a large icon to show or hide text associated with the command (the text is displayed is the window is wide enough), to add a separator before the command, or to remove the command:
|
