Edge-Face Round

Access: Open this function from one of the following locations:

  • Click the button in the toolbar.

  • Select Solid > Modification > Edge-Face Round from the menu bar.

Create rounds on faces that start from a given edge or curve.

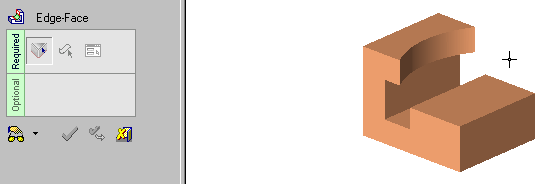

Demo: Press the button below to view a short movie demonstrating the function:

Practice: Press the button below to open Cimatron with a practice ELT file similar to that used to create the movie (if the relevant feature already exists in the ELT file, you can either edit it or delete it and create a new feature).


General Interaction

The following is the Feature Guide for Edge-Face Round.

   Tip: You can open the Feature Guide at any time by right-clicking the mouse in the graphic display area.

Required Step 1 : Select the edge from which the round will be created.

Required Step 2  :Select the face or group of faces to be rounded.

Required Step 3 : Set the rounding parameters.

Detailed Interaction

See Options and Results.



Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
