Mesh
Access: Open this function from the following location:
-
Select Faces > Create Faces > Mesh from the menu bar.
Create a face by defining a mesh of curves/edges (sections and cross sections).
|
Demo: Press the button below to view
a short movie demonstrating the function:
|
Practice: Press the button below to open Cimatron with a practice ELT file similar to that used to create the movie (if the relevant feature already exists in the ELT file, you can either edit it or delete it and create a new feature). |
|
|
|
Note: When the Auto Stitch option is selected, the newly created faces are automatically stitched to adjacent active faces if they completely share a common edge. If you do not want auto-stitching, make sure that objects containing the adjacent faces are deactivated. See Activate / Deactivate.
General Interaction

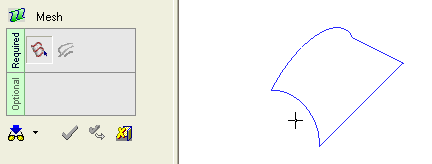

The following is the Feature Guide for Mesh.
|
|
|
Tip:
Required Step 1
: Define sections.
Required Step 2
: Define cross-sections.
Detailed Interaction
See Options and Results.
|
