Deform Faces
Access: Open this function from the following location:
-
Select Faces > Modify Faces > Deform Faces from the menu bar.
Modify a face or a group of stitched faces by defining a set of constraints.
|

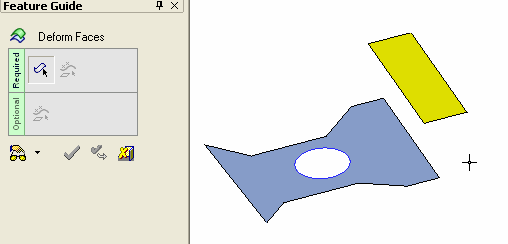

Demo: Press the button below to view
a short movie demonstrating the function:
|
Practice: Press the button below to open Cimatron with a practice ELT file similar to that used to create the movie (if the relevant feature already exists in the ELT file, you can either edit it or delete it and create a new feature). |
|
|
|
General Interaction
The following is the Feature Guide for Deform Faces.
|
|
|
Tip:
Required Step 1
: Pick a face or group of stitched faces.
Required Step 2
: Pick references and define constraints.
Optional Step 1 : Pick entities to be fixed in place.
Deforming Faces - Detailed Interaction of All Options
-
Close small gaps: Close small gaps between edges.
-
Close large gaps between multiple faces: Close large gaps between edges.
|
