Nesting > Two Different Parts
Access: Open this function from one of the following locations:
-
Select Die Design > Nesting > Two Different Parts from the menu bar.
-
Select Nesting > Two Different Parts from the following Die Design Guide: Die Strip Design Guide.
Create nesting for two parts. This function enables you to create additional instances of two forming shapes, placing them in the X direction of the active UCS of the strip sub-assembly in two rows. Mirror parts are considered as two different parts.
This function includes the following:
-

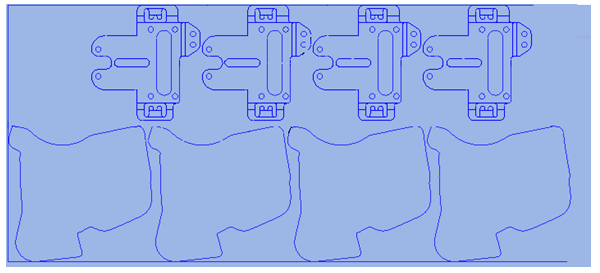

Two Parts - Two RowsTwo Parts - Two Rows: In this case the die application produces two parts in every operation, as shown in this sample picture.
General Interaction
The following is the Feature Guide for Nesting - Two Parts.
|
|
|
Tip:Required Step 1
: Pick the two 2D wire bodies.
Required Step 2
: Define the nesting parameters.
Detailed Interaction
See Options and Results.
|
