Relocate Forming Shape : Options and Results

Access: Open this function from one of the following locations:

  • Select Die Design > Forming Shapes > Relocate from the menu bar.

  • Select Forming Shapes > Relocate Forming from the following Die Design Guide: Die Process Design Guide (Forming).

Relocate a forming shape in the forming environment.

Required Step 1 : Pick the Forming Part to Relocate

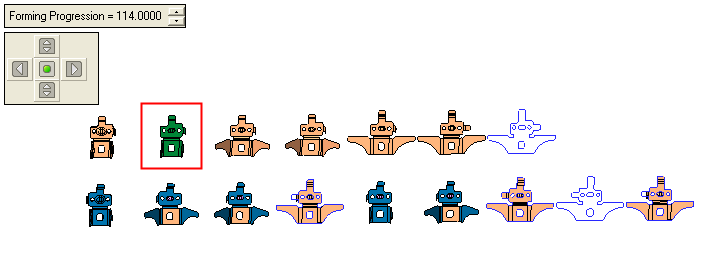

  1. Select the required forming part to relocate. The selected part is highlighted in green as shown in the following image:

Required Step 2 : Place the Forming Part

  1. Use the navigation arrows to place the forming shape in the required location. See Add Forming Shape: Options & Results for an explanation of how to use the navigation arrows.

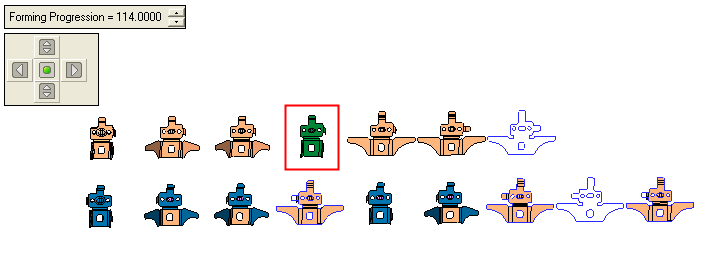

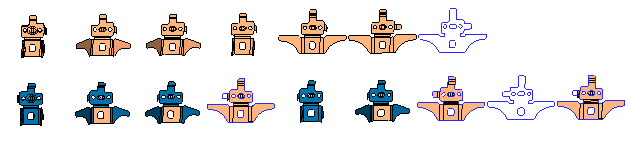

    In this case the forming shape has been relocated two positions to the right.
  2. Click OKOK or ApplyApply in the Feature Guide to complete the function.
