Slot
Access: Invoke the Sketcher, define the sketch plane and then invoke this function from the following location:
-
Click the Slot button
in the Sketcher toolbar.
Create a slot shape.
Design slots with a single operation rather than creating the slot elements separately.

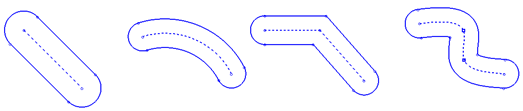

A slot may be defined dynamically by interactively defining its spine line or arc (in any of the methods available in the Sketcher to define them), or by selecting any sketcher geometry as its spine. The slot's thickness (offset from spine) may be defined as a dimension or by free hand.
General Interaction
The following is the Feature Guide for Slot.
|
|
|
Tip:Required Step 1
: Define the slot spine geometry; pick the line start point or right-click to open the Sketcher popup menu for additional options.
Required Step 2
: Set the offset parameters.
Detailed Interaction
See Options and Results.
|
