Part Graphics Window Popup Submenus

Right-click the Graphics Pane to display the popup submenu. It is context-sensitive, so the options that appear depend on factors such as the type of file that is open, element activation state, and whether specific entities have been picked prior to activating the menu.

Note: If you right-click while a function is active, the Feature Guide will open, rather than the popup submenu.

The following basic popup menus are available when selecting:

• No entities

• Face

• Composite Curve

• Object

• UCS

No entities

If no entities are selected, the following popup will appear.

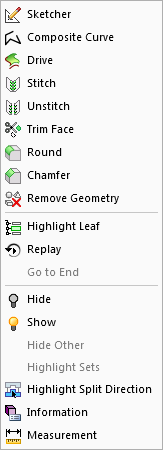

Sketcher Composite Curve Drive Stitch Unstitch Trim Face Round Chamfer Remove Geometry Highlight Leaf Replay Go to End Hide Show Hide Other Highlight Sets Highlight Split Direction Information Measurement

Face

If a face is selected, the available options change:

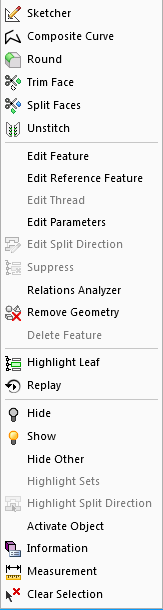

Sketcher Composite Curve Round Trim Face Split Faces Unstitch Edit Feature Edit Reference Feature Edit Thread Edit Parameters Edit Split Direction Suppress Feature Relations Analyzer Remove Geometry Delete Feature Highlight Leaf Replay Hide Show Hide Other Highlight Sets Highlight Split Direction Activate Object Information Measurement Clear Selection

Composite Curve

If a Composite Curve is selected, the available options change:

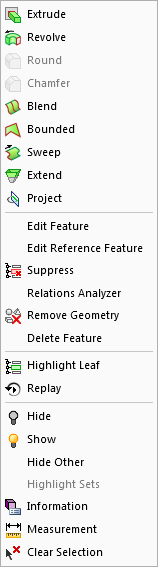

Extrude Revolve Round Chamfer Blend Bounded Face Sweep Extend Project Edit Feature Edit Reference Feature Suppress Feature Relations Analyzer Remove Geometry Delete Feature Highlight Leaf Replay Hide Show Hide Other Highlight Sets Information Measurement Clear Selection

Object

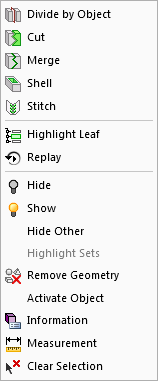

Divide by object Cut Merge Shell Stitch Highlight Leaf Replay Hide Show Hide Other Highlight Sets Remove Geometry Activate Object Information Measurement Clear Selection

UCS

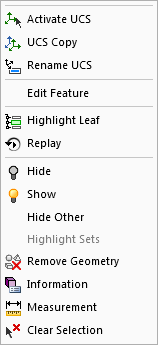

Activate UCS Copy UCS Rename UCS Edit Feature Highlight Leaf Replay Hide Show Hide Other Highlight Sets Remove Geometry Information Measurement Clear Selection

There are many more forms this popup submenu can take, depending on what is selected.



Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
