Split Curve
Access: Open this function from one of the following locations:
-
Select Wireframe > Main Tools > Split from the menu bar.
-
Select Curves > Split from the following Die Design Guides: Strip Design.
Split curves by geometry.
Split one or more curves by a point, curve, face, or datum plane.
|
Demo: Press the button below to view a short movie demonstrating the function: |
Practice: Press the button below to open Cimatron with a practice ELT file similar to that used to create the movie (if the relevant feature already exists in the ELT file, you can either edit it or delete it and create a new feature). |
|
|
|
General Interaction

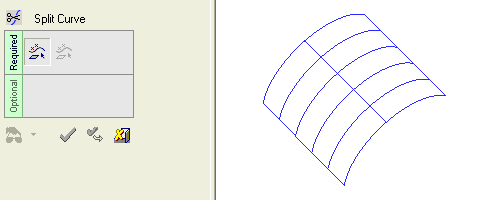

The following image shows the Feature Guide for Split.
|
|
|
Tip:Required Step 1
: Select the group of curves (one or more) to be split.
Required Step 2 : Select the entity that will be used to split the curves. This entity can be a point, curve, face, or datum plane.
Detailed Interaction
See Options and Results.
|
