Navigator : Step > By Block

Access: Open this function from one of the following locations:

Select NC Process > Simulation > Navigator from the menu bar.
Select the Navigator button from the NC Guide Toolbar.
Right-click on an item in the Process Manager, or anywhere in the graphics window when no procedure is active, and select NC Guide Commands > Navigator from the popup menu.

Display (hide/show) motions By Block.

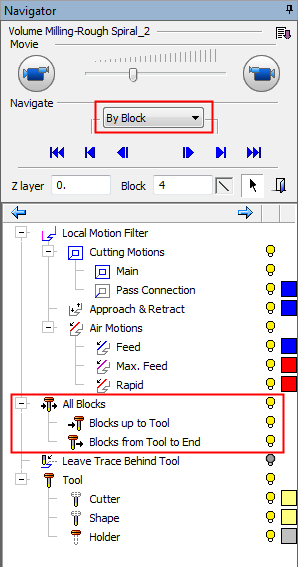

The following specific By Block display options appear in the Navigator. Initially, these options are all shown, thereby displaying all the blocks.

Use the Navigator controls to view the required motions. For examples of the use of the various Navigator controls, see By Layer.

Notes:

For an explanation of the Local Motion Filter tree, see the Global Filter.
For an explanation of the Tool tree, see the Preview.
The Shape is defined in the Machining Param. tab of the Cutters & Holders Dialog, and in the Navigator you can hide/show it.
