Blender Design
Introduction

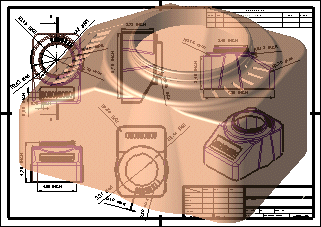

The Blender part shown below is built using various solid building tools found in Cimatron. The drive, taper, helix, shell, extrude, and round functions are all used in the creation of the blender. Plane functions and various Sketcher elements are used in conjunction with these solid tools.
This tutorial will also demonstrate the importance of build order in Cimatron.
Steps to Follow
This tutorial is divided into four steps. Try doing these on your own, but if you need assistance, use the walk-through tutorial in the following pages.
