Assign Components
Access: Open this function from one of the following locations:
-
Select Die Design > Tools > Assign Comp. from the menu bar.
-
Select Tools > Assign Comp. from the following Die Design Guide: Die Tool Design Guide.
-
Select Mold Design > Mold Quote > Assign Comp. from the menu bar.

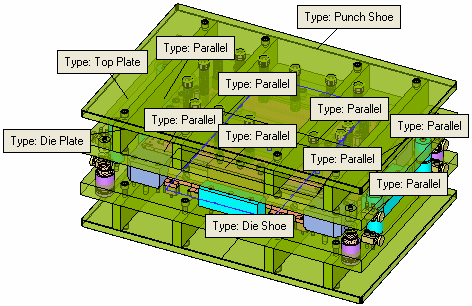

Assign predefined attributes to selected plates or components, according to their role.
These attributes and their offset default values are defined in the Punch tab of the Die Setup dialog. In this procedure you may change the offset values, as required.
This information is added to a Component Table (displayed in the function).
General Interaction
The following is the Feature Guide for Assign Components.
|
|
|
Tip:Required Step 1
: Select the component(s) to be assigned.
Required Step 2
: Define the component type.
Detailed Interaction
See Options and Results.
|
