Extend Face : Options and Results

Access: Open this function from one of the following locations:

Click the button in the toolbar.
Select Faces > Main Tools > Extend from the menu bar.
Select Parting Surfaces > Extend New Parting from the Mold Design Guide Toolbar or Parting Guide Toolbar.

Extend faces beyond their edges. This extends one or more faces (or creates new faces) on the edges of open or stitched faces.

Notes:

If you want to join several objects into one object, regardless of boundaries, use the Merge function.
If you want to separate faces from an object, thus creating separate objects, use the Unstitch function.

Required Step 1

For the face(s) to be extended, pick one or more edges or a composite curve based on the edges of open or stitched faces and set the parameters.

The following parameters are displayed:

Select the required option:

Optional Step 1

Set a draft angle. This option is only available for the Tangent > Normal option.

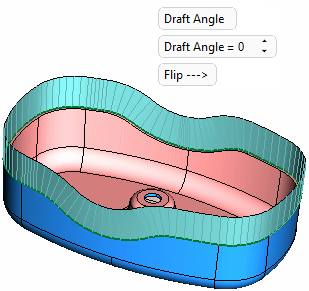

Draft Angle

This is a toggle option Draft Angle / None that enables you to either define a draft angle to the extension or, by selecting None, to close the options without a draft angle.

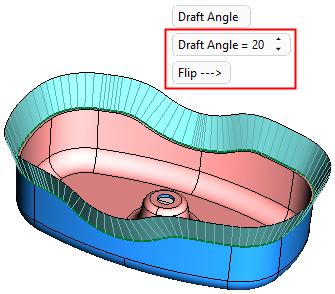

If Draft Angle is selected, define the required angle.

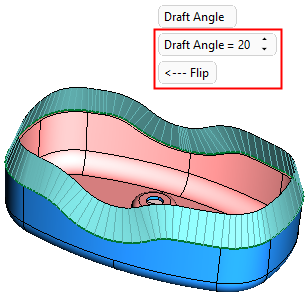

Flip

Flip the draft angle as required.

Optional Step 2

Pick edges to replace the extended faces with a patch. This option is only available for the following options:

Tangent > Normal option if the Single Face option was not selected in Required Step 1.
Tangent > Normal option if the Draft Angle option was not selected in Optional Step 1.
Tangent > Continuous
Natural - Multi Continuous

This step can be used to create patches on complex areas that may require additional manipulation to achieve the desired result, as shown below.

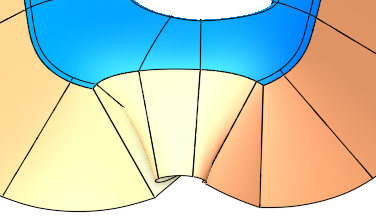

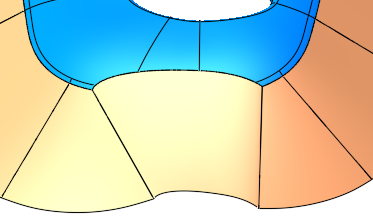

Complex area with undesired result	Patch created to achieve the desired result

In this step, all edges picked in Required Step 1 are colored YELLOW. Pick the edges where the adjacent extended faces are to be replaced with a patch; the picked edges are displayed in RED.

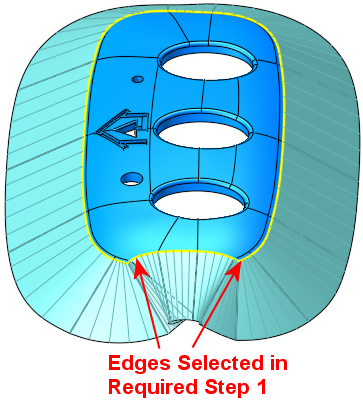

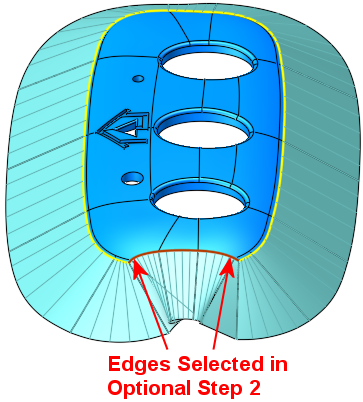

All edges picked in Required Step 1 are colored YELLOW	The edges picked in Optional Step 2 are displayed in RED. The extended faces along these picked edges will be replaced by a patch

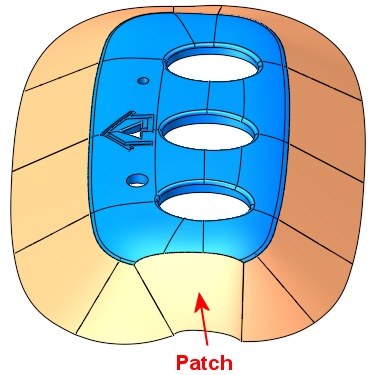

The patch is created along the selected edges

Click OKOK or ApplyApply in the Feature Guide to complete the function.

When completed, the Extend feature will appear in the Feature Tree as follows:

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
