Unstitch

Access: Open this function from one of the following locations:

  • Click the button in the toolbar.

  • Select Faces > Main Tools > Unstitch from the menu bar.

  • Select Unstitch on the popup menu if no geometry is selected.

Separate faces of objects into individual objects.

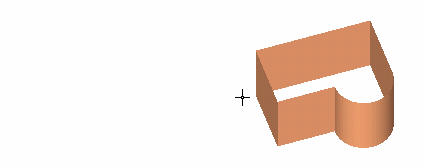

Demo: Press the button below to view a short movie demonstrating the function:

Practice: Press the button below to open Cimatron with a practice ELT file similar to that used to create the movie (if the relevant feature already exists in the ELT file, you can either edit it or delete it and create a new feature).





Note: If you want to join faces into one object, use the Stitch function.

General Interaction

The following is the Feature Guide for Unstitch.

   Tip: You can open the Feature Guide at any time by right-clicking the mouse in the graphic display area.

Required Step 1 : Pick the faces to be unstitched.

Detailed Interaction

See Options and Results.
