Boundary : Options and Results

Access: Open this function from one of the following locations:

Click the button in the toolbar.
Select Faces > Modify Faces > Boundary from the menu bar.
Select Parting Surfaces > Islands from the Mold Design Guide Toolbar or Parting Guide Toolbar.

Extend a face beyond its boundaries or complete its missing islands.

Required Step 1

Pick the face whose boundaries are to be modified.

Required Step 2

Set modification parameters. The following parameters are displayed:

Boundaries

This is a toggle option, Boundaries / Islands, that enables you to define the type of operation to be performed.

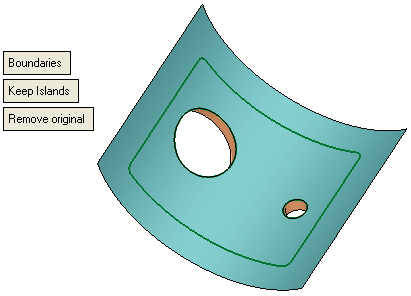

Boundaries

Perform the operation on the boundaries of the selected face. The face will be increased along its natural extension, slightly beyond the current bounding box of the part.

Notes:

The face will be extended along its isoparametric curves. In other words, the extension will follow the section - cross section curves of the original face. For more details on section / cross section curves, see Display Curves.
When picking an analytical face, the boundary is extended by 20 percent (as opposed to creating a complete periodic face).

Islands

Perform the operation on islands that are completely enclosed by the face. All islands are automatically selected; you can pick an island to unselect it.

Keep Islands

This is a toggle option Keep Islands / Remove Islands that enables you to keep or remove any islands that exist in the picked face. This option appears if the Boundaries option is selected, above. Keep Islands is the default option.
Examples:Examples:

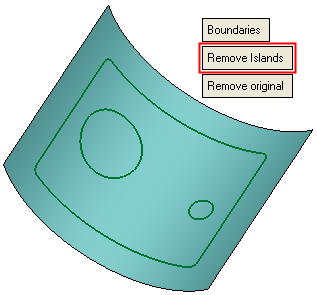

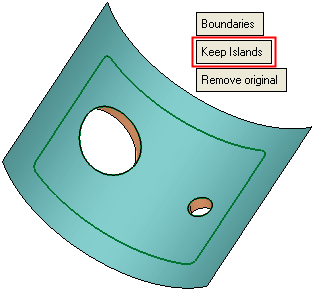

Remove Islands:	Keep Islands:

Remove Original

This is a toggle option Remove Original / Keep Original that enables you to either remove the original face (leaving only the modified face) or to keep both the original and modified faces. Remove Original is the default option.
Examples:Examples:

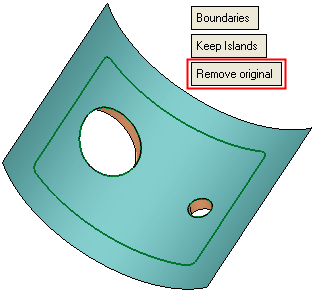

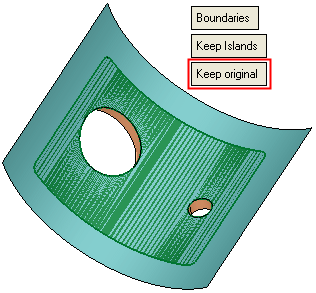

Boundaries options - Remove Original and Keep Original:



Islands options - Remove Original and Keep Original:

Outside

This is a toggle option, Outside / Inside, that enables you to perform operations either outside or inside the islands. This option appears if the Islands option is selected, above. Outside is the default option.

Toggle to Inside to convert the islands into a face and the area that was previously the face around the island, into an island.
Examples:Examples:

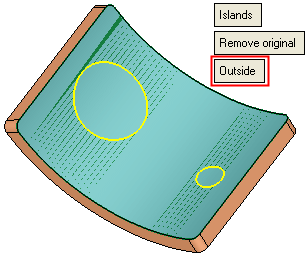

Outside:	Outside- Result:

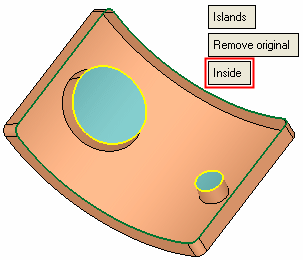

Inside:	Inside - Result:

Click OKOK or ApplyApply in the Feature Guide to complete the function.

When completed, the Modify Boundaries feature will appear in the Feature Tree as follows:

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
