Not Cut Automatically

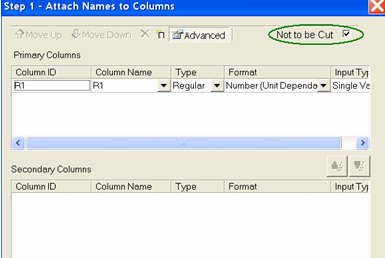

Access: This parameter can be defined in the following places:
-

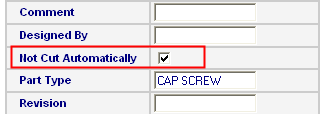

Under the Properties Advanced tab of the Cimatron Explorer.
This parameter is used to mark specific components (such as screws, nipples, plugs, and so on) that should not be cut by other components.
The following parts, created automatically by the system, are marked as not to be cut by default when they are created:
When Cimatron creates an automatic cut (for example, in Add Component) and finds that parts with a Not to be Cut attribute may be cut, a message is displayed.
In the example below, the gray screw is attempting to cut the blue screw (which is defined as Not to be Cut). The cutting screw is now displayed in red.
|
|
|
|
|
