Drive (Solid)
: Editing
You can edit:
Note: If your changes result in a geometric impossibility or cause problems in subsequent features, you will be warned by the Conflict Solver.
Editing the Solid Drive feature
Right-click on the relevant feature in the Feature Tree, and from the displayed popup submenu, select Edit Feature or Edit Reference Feature as required (see Editing a Feature).
The appropriate function is invoked with the Feature Guide automatically opened at the relevant step. Proceed through the function's steps to edit the feature/reference feature as required.
Click OKOK
or ApplyApply
in the Feature Guide to complete the function.
Editing the numerical parameters only
If you want to modify only the numerical parameters, either double-click the Drive name in the Feature Tree or double-click a Drive face in the display.
The sketch dimensions are displayed. Press exitexit to leave edit mode or click a value to open the Edit Parameters dialog. In this dialog you can enter another value or enter an equation involving parametric dependency.
When the parameters are updated, click
to update the feature, or you can update it later. (If you do not update now, all updates will be done automatically the next time you create or edit any feature or object.) Press exitexit to leave edit mode.

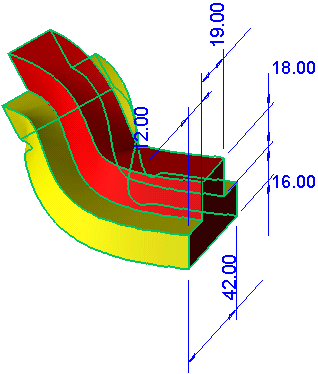

Double-click on a Drive face to display all numerical parameters. All displayed parameters are sketch dimensions.

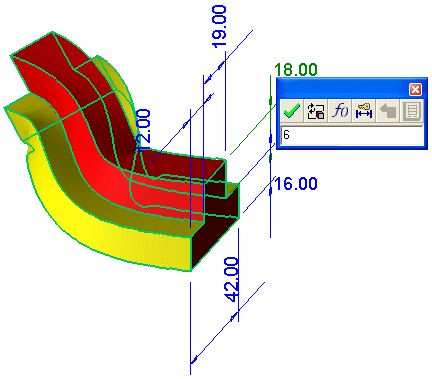

Click a value to open the Edit Parameters dialog. Enter a new value, or enter an equation involving parametric dependency.
Click to update.
