Loading a Mechanism Assembly
: Adding & Positioning
Access:
-
Click the
button, or select Assembly
> Add From Catalog from the Assembly
menu bar. The function also appears on the Graphics
Area popup submenu. -
Select a Mechanism Assembly from the Catalog.
Run the Add from Catalog function. The Cimatron Explorer is displayed.

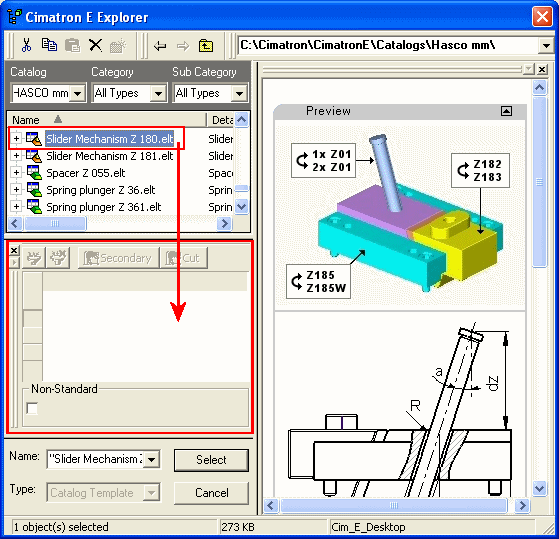

Select a Mechanism Assembly from the Catalog.
Note that if a Mechanism Assembly is selected, the catalog parameter table is not displayed in the dialog.
ExampleExample:
If an ordinary catalog part is selected, then the catalog table is displayed.
ExampleExample:
The Add from Catalog component positioning parameters are displayed at the Required Step 2 stage.

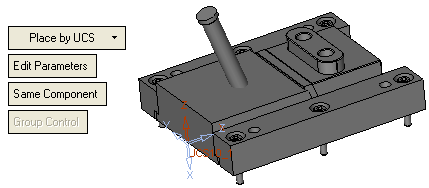

Position the Mechanism Assembly. The Mechanism Assembly is now displayed in preview mode. If groups of interchangeable parts have been defined, the first option in every group is initially displayed.
|
