Point By Pick

Access: Open this function from the following location:

Select Wireframe > Point> Point By Pick from the menu bar.

Create point geometry by selecting points in the graphics area.

Create point(s) while outside the sketcher environment. All points created (both in the Sketcher and Modeling environments) can be picked in the Modeling environment.

Note: Points are created according to the Active Style Settings for curves. The line width, color, etc. of selected points can be changed as required.

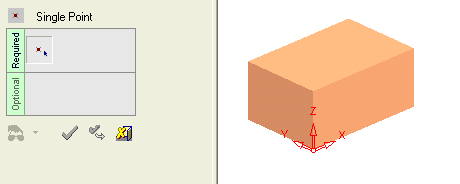

Demo: Press the button below to view a short movie demonstrating the function:	Practice: Press the button below to open Cimatron with a practice ELT file similar to that used to create the movie (if the relevant feature already exists in the ELT file, you can either edit it or delete it and create a new feature).

General Interaction

The following image shows the Feature Guide for Point - By Pick.

Tip: You can open the Feature Guide at any time by right-clicking the mouse in the graphic display area.

Required Step 1 : Pick the area on the curve or edge where a point is to be created.

Detailed Interaction

See Options and Results.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
