Assembly Hide/Show Operations in the Tree

The following display icons appear in trees containing assemblies:

Parent assembly

	Show All: When the icon is displayed adjacent to a Parent Assembly, it indicates that all of the components within the Parent Assembly are shown – there are no suppressed or deep hide components.
	Hide All: When the icon is displayed adjacent to a Parent Assembly, it indicates that all of the components within the Parent Assembly are not shown – some components may be suppressed or deep hide components.
	Mixed: When the icon is displayed adjacent to a Parent Assembly, it indicates that at least one of the components within the Parent Assembly is shown and at least one is hidden.
	Show Possible: When the icon is displayed adjacent to a Parent Assembly, it indicates that all of the components within the Parent Assembly are shown, except for components that are suppressed or deep hide.

Sub-assembly / component

The following display icons appear in trees containing assemblies:

	Show: Show the component. The bulb is displayed adjacent to the hidden component(s).
	Hide: Hide the component. The bulb is displayed adjacent to the hidden component(s).
	Mixed: Some of the components under the folder are hidden and some are shown. The bulb is displayed adjacent to the hidden folder(s).
	Ignore in Show Operations – Deep Hide: Hide components and sub-assemblies at a deeper level in the tree. These components and sub-assemblies will not appear when using the Show or Show All commands. Components marked with the visibility icon are in deep hide mode.
	Ignore in Show Operations – Display: Display components marked as (in deep hide mode). Components marked with the visibility icon are deep hide components that have been manually made visible.
	Suppressed: When this icon is displayed adjacent to a Parent Assembly, it indicates that the Assembly is suppressed or all of its sub-components are suppressed.

For detailed information on these display modes, see Hide/Show Operations in the Tree.

For information on additional Hide/Show modes, see Hiding and Showing Entities via the Tools toolbar.

Hide / Show

Show or hide a component in the Assembly Tree.

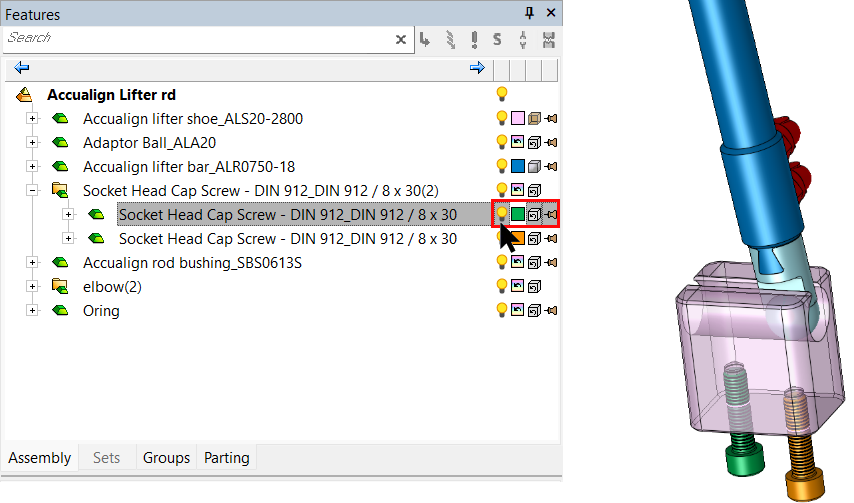

When the Show icon is displayed, the cap screw (shown in green) is visible.

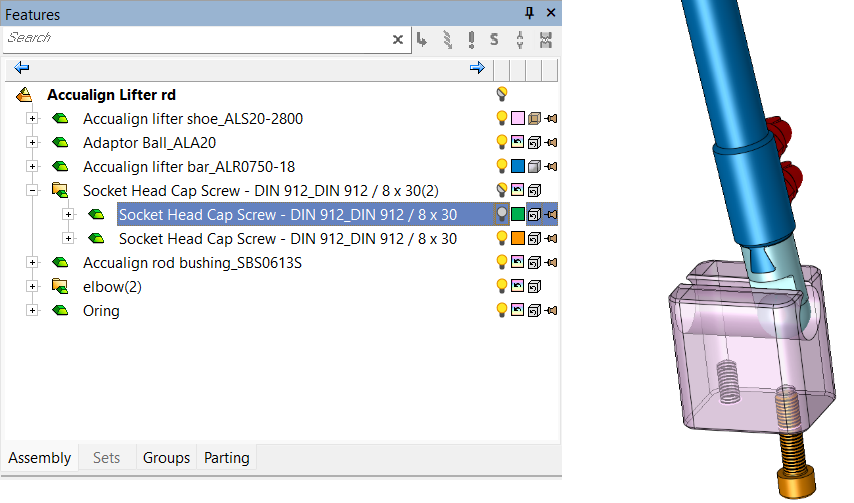

Click the Show icon to change it to Hide . The cap screw (shown in green) is hidden.

Folder Level – Show, Hide, Mixed

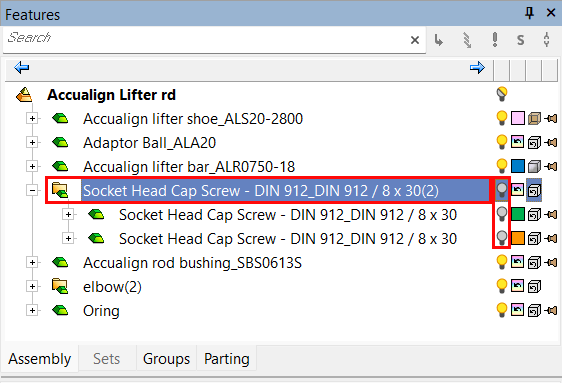

A Show, Hide, or Mixed button at the folder level is used to denote the display status of components in the folder. Selecting Show or Hide at the folder level, shows or hides all the components in the folder.

If a folder displays a Show icon, all the components in the folder are shown.

If a folder displays a Hide icon, all the components in the folder are hidden.

If a folder displays a Mixed icon, some of the components in the folder are hidden and the others are shown.

Instance – Show, Hide, Mixed

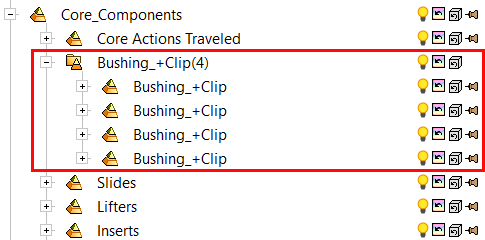

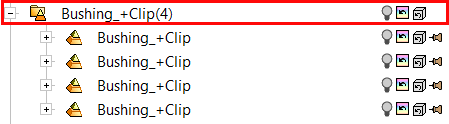

This section describes how the Hide, Show, and Mixed buttons work with an instance of sub-assemblies (in this example, the instance contains four sub-assemblies):

Examples

A Show, Hide, or Mixed button at the folder level is used to denote the display status of sub-assemblies in the folder. Selecting Show or Hide at the folder level, shows or hides all the sub-assemblies in the folder. Hiding or showing the folder level affects all items under the folder (in this case the instance folder is hidden, which hides all the items in the folder).

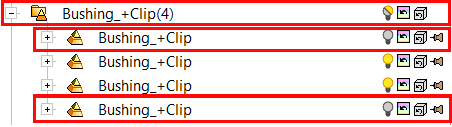

Changing the Hide / Show status of one sub-assembly of the instance affects only that sub-assembly. The status of the other sub-assemblies in the instance is unchanged. The instance folder displays the Mixed icon to signify that some of the items under the folder are hidden and the others are shown. In the example below, two of the sub-assemblies of the instance is hidden and the display status of the others remains unchanged.

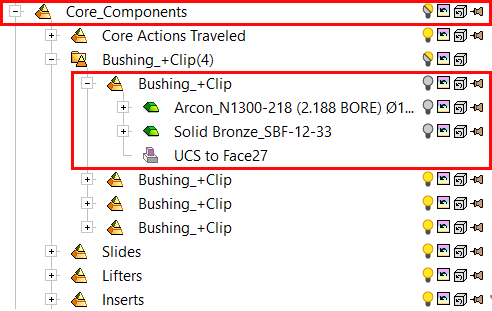

As the sub-assembly itself is a folder, all items under it are also hidden:

An item may be used in more than one sub-assembly—If the Hide / Show status of an item in a sub-assembly of the instance is changed, this affects that same item in all the sub-assemblies of the instance.

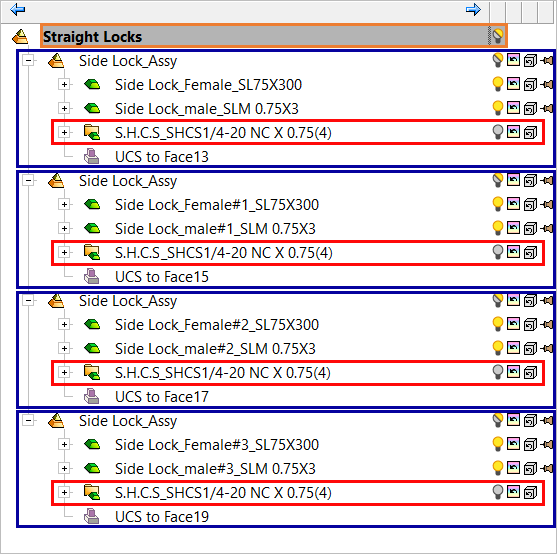

In the example below, the highlighted item is hidden. This hides the same item in all the sub-assemblies of the instance and the instance folder displays the Mixed icon.

Note: Double-clicking the folder in the Assembly Tree will activate the first component listed under the folder.

Ignore in Show Operations

Use the Ignore in Show Operations display bulb icon to specify the components that will not appear when using the Show command. In some cases, you may not need to see particular part types, such as cooling parts, layout parts, and so on, and these can be hidden from view.

The normal Show command enables you to preview assembly parts that are hidden. The Ignore in Show Operations option is used to not to show a particular hidden part or sub-assembly when previewing hidden parts.

Use this feature by right-clicking in the tree on an assembly, sub-assembly, or part and selecting Ignore in Show Operations from the popup menu. This option is available from the Assembly Tree and only for parts (however, it can be operated through sub-assemblies for all their parts).

When this option is turned ON, the following occurs:

The Ignore in Show Operations menu option is highlighted.

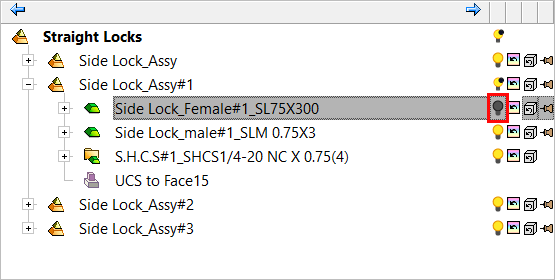

The display bulb icon of the part appears as (Deep Hide). If all the components inside a sub-assembly display the bulb icon, the bulb icon of the assembly is also .

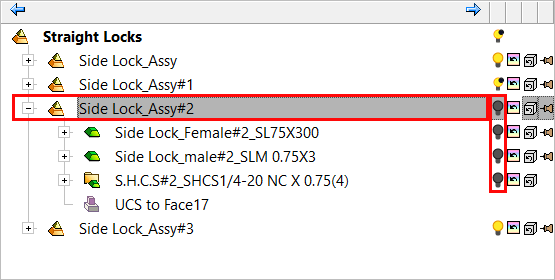

An assembly part marked as Ignore in Show Operations	An assembly and its components marked as Ignore in Show Operations

Components marked with the Deep Hide bulb icon are not shown when the Show command is used (either Show or Hide/Show Toggle) on the sub-assembly they are in or the main assembly.

Such a part can only be shown by showing it from the tree using one of the following methods:

By using Hide Other on the part itself
By activating the part
By clicking on the bulb icon of the part or sub-assembly. In this case the bulb icon is displayed. When clicking on a sub-assembly with a bulb icon, all its components display the bulb icon.

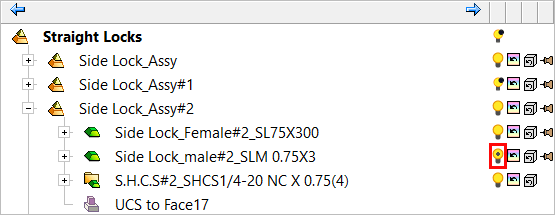

A part displaying the bulb icon (click a bulb icon to show a part marked as Ignore in Show Operations).

Notes:

The Ignore in Show Operations option is automatically turned ON for the following parts:
- Parts added with the Add Comparison Part function
- Cooling parts
- Runner parts
- Layout parts

These parts are created visible but marked as Ignore in Show Operations.

The Ignore in Show Operations behavior is also relevant for the following trees:
- Parting Tree (part level only)
- Electrode Tree
- ECO Tree

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
