Cimatron Control Panel > Utilities

Access: Open this function from the following location:

Cimatron Control Panel: Select Start > All Programs > Cimatron > Cimatron Control Panel.

Select Utilities.

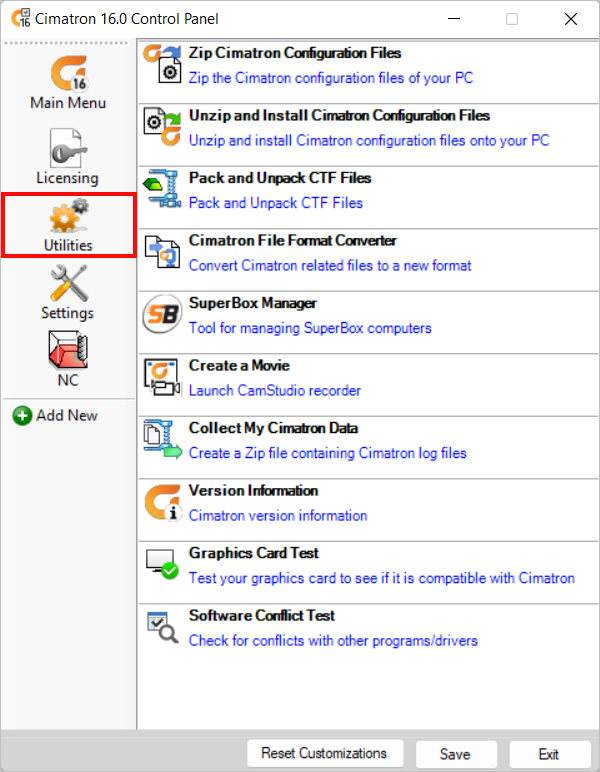

Run various applications from the Utilities tab of the Cimatron Control Panel (see below).

Click on the icons on the left side of the dialog for a description of each area.

Zip Cimatron Configuration Files	Zip the Cimatron configuration files of your PC.
Unzip and Install Cimatron Configuration Files	Unzip and Install Cimatron configuration files onto your PC.
Pack and Unpack CTF files	Pack and Unpack CTF files.
Cimatron File Format Converter	Convert all Cimatron related files to the new Cimatron compressed file format (Cimatron 9.0 and higher).
Offload Calculation Seat (SuperBox) Manager	The Offload Calculation Seat Manager is an interface to connect your computer to one or more Offload Calculation Seats.
Create a Movie	Create a movie to record events from your Cimatron window. Amongst other uses, this tool can also be used for support-related issues.
Collect My Cimatron Data	Create a ZIP file containing Cimatron installation data from your PC. Amongst other uses, this tool can also be used for support-related issues.
Version Information	Display Cimatron version information.
Graphics Card Test	Test your graphics card to see if it is compatible with Cimatron.
Software Conflict Test	Check for a software conflict test if one of the following occurs: Cimatron cannot start and one of the following error messages is displayed: The application was unable to start correctly (0xc0000142). Click OK to close the application. The application was unable to start correctly (0xc0000005). Click OK to close the application. Cimatron cannot start, but no error message is displayed. Cimatron does start, but no text shows up (Menu, Toolbar, etc.).

When you have finished using the Control Panel, select the appropriate approval option below.

Approval Options

The following options appear at the bottom of the Cimatron Control Panel:

Reset Customizations	Reset all customizations to the Control Panel. This resets the Control Panel back to the default settings.
Save	Save all customizations.
Exit	Exit the Control Panel. If you have customized the Control Panel and pressed Exit before saving, you are prompted to save your changes before exiting.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
