Divide By Contour
: Editing
You can edit:
Note: If your changes result in a geometric impossibility, or cause problems in subsequent features, you will be warned by the Conflict Solver.
Editing the Divide by Contour Feature
Select one Divided face or edge and then right-click.
|
|
Select either the red face or one of its edges, which are the results of dividing the original rectangular solid by a contour. |
OR:
Right-click on the relevant feature in the Feature Tree, and from the displayed popup submenu, select Edit Feature or Edit Reference Feature as required (see Editing a Feature).
The appropriate function is invoked with the Feature Guide automatically opened at the relevant step. Proceed through the function's steps to edit the feature/reference feature as required.
Click OKOK
or ApplyApply
in the Feature Guide to complete the function.
Editing the Numerical Parameters Only
If you want to modify only the numerical parameters, either double-click the Divide by Contour name in the Feature Tree or double-click a Divide face in the display.
All parameters are displayed. Press <exit><exit> to leave edit mode, or click a value to open the Edit Parameters dialog. In this dialog you can enter another value, or enter an equation involving parametric dependency.
When the parameters are updated, click
to update the feature, or you can update it later. (If you do not update now, all updates will be done automatically the next time you create or edit any feature or object.) Press <exit><exit> to leave edit mode.

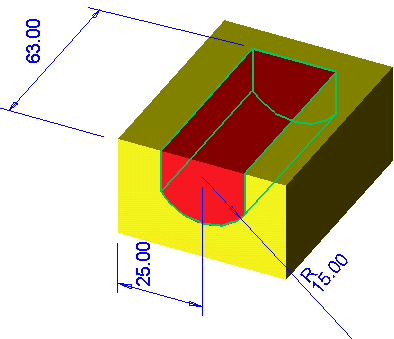

Double-click on a Divide face (in this case, a red face) to display all numerical parameters. The delta value of 63 is displayed, and the remaining parameters are sketch dimensions.

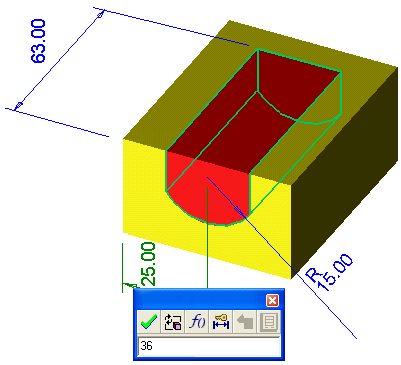

Click a value to open the Edit Parameters dialog, in this case a sketch dimension. Enter a new value, or enter an equation involving parametric dependency.
Click to update.
