Using Parameter Tables
Access: Open this function from one of the following locations:
-
Select NC Edit > Change Parameters > Edit Procedure Parameters from the menu bar.
-
Double-click the procedure in the Process Manager.
-
Right-click the procedure in the Process Manager, and select Edit > Edit Procedure Parameters from the popup menu.
-
Right-click in the graphics window when no procedure is active and select Edit > Edit Procedure Parameters from the popup submenu.
NC Parameter Tables are displayed in a collapsible tree format, as shown below:
|
Parameter Tables Collapsed: |

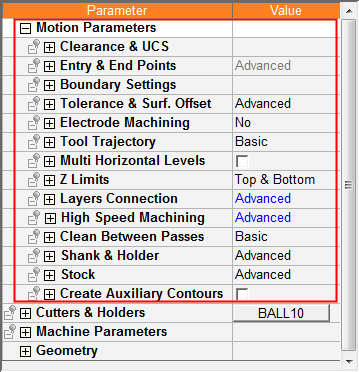

Parameter Tables Expanded (showing the Motion Parameter tables): |
|
|
|
See Parameter Table Types for a list of available parameter tables. Depending on the procedure you have selected, some parameters may not be available or other parameters may be displayed.
There are a number of ways to control the display of individual parameters:
|
