Local Operations > 3X Deburring

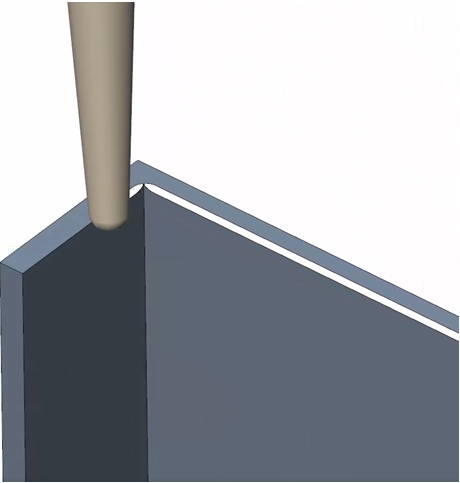

3X Deburring is a high quality toolpath that removes or chamfers burrs on external sharp edges. Cimatron can automatically detect the machined edges or they can be selected manually; however, the geometry must be of adequate quality for the automatic edge detection to perform optimally. 3X Deburring also offers automatic linking between segments and collision detection. Note that this procedure only supports ball or lollipop cutters and is identical to 5X Deburring.

Note: The MILL_3X Module is required for the 3X Deburring procedure. This module is a standard component of the Cimatron NC Module and requires no further licensing. Please contact your Cimatron provider/reseller for more information.

Creating this procedure

See Creating a Procedure for a general explanation.

1. Define the procedure's Machining Technology by selecting Local Operations as the Main Selection and 3X Deburring as the Subselection.

2. Define a cutter/holder by selecting the Cutters & Holders branch in the Parameter table.

Note: 3X Deburring only supports ball or lollipop cutters.

3. Define the following Motion Parameters:

   • Clearance & UCS

   • Tolerance & Surf. Offset

   • Tool Trajectory (click the Access button in the Tool Trajectory branch)

   • Stock

4. Define the Machine Parameters.

5. When finished, you can click one of the Work Mode Dialog buttons listed below or right-click anywhere in the Cimatron graphics pane to activate the Procedure popup submenu.

   • Save & Close to suspend

   • Save & Calculate to execute

   • Save Original

   • Cancel

Detailed Interaction

See Options and Results.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
