Shell
: Editing
You can edit the:
Note: If your changes result in a geometric impossibility, or cause problems in subsequent features, you will be warned by the Conflict Solver.
Editing the Shell Feature
Right-click on the relevant feature in the Feature Tree, and from the displayed popup submenu, select Edit Feature or Edit Reference Feature as required (see Editing a Feature).
The appropriate function is invoked with the Feature Guide automatically opened at the relevant step. Proceed through the function's steps to edit the feature/reference feature as required.
Click OKOK
or ApplyApply
in the Feature Guide to complete the function.
Editing the Shell Thicknesses Only
If you want to only modify one or more of the shell thickness values, either double-click the Shell name in the Feature Tree or double-click a Shell face in the display.
The thickness values are displayed. Press <exit><exit> to leave edit mode, or click a value to open the Edit Parameters dialog. In this dialog you can enter another value, or enter an equation involving parametric dependency.
When the parameters are updated, click
to update the feature, or you can update it later. (If you do not update now, all updates will be done automatically the next time you create or edit any feature or object.) Press <exit><exit> to leave edit mode.

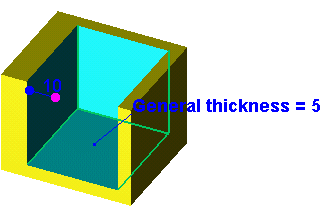

Double-click on a shell face (one of the blue interior faces) to display the thickness value(s). In this case there is a general thickness and one non-uniform side.

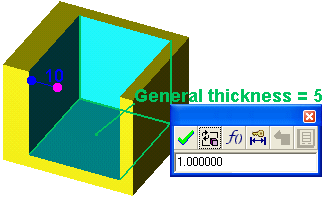

Click a value to open the Edit Parameters dialog, in this case the general thickness. Enter a new value, or enter an equation involving parametric dependency.
Click to update.
