Sweep
Access: Open this function from one of the following locations:
-
Click the
button in the
toolbar. -
Select Faces > Main Tools > Sweep from the menu bar.
-
Select Parting Surfaces > Sweep from the Mold Design Guide Toolbar or Parting Guide Toolbar.
-
Select Sweep on the popup menu if a curve, edge, sketch or contour is selected.
Create a face by sweeping a curve, edge, contour or sketch in a specified direction.
General Interaction
The following is the Feature Guide for Sweep.
|
|
|
Tip:
Required Step 1
: Pick contour(s) / curve(s) and then <exit><exit>.
Required Step 2
: Set the sweep parameters.
Optional Step 1
: Set a draft angle.
Creating a Sweep Face - Detailed Interaction of All Options
-
Delta/Reference: Sweep the selected geometry on one or both sides, either by Delta (by a given value and direction) or by Reference (to a reference face, plane or point).
-
Delta Mid Plane: Sweep the selected geometry on both sides, by the same value and direction.
Examples

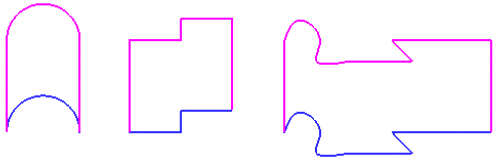

It is possible to sweep a 2D curve or composite curve in a direction tangential to the sweep's profile and singularity or from a self-intersecting face. The system will create a copy of the 2D edge / wire-body in the direction (in the 2D plane) defined by the user, and will close the geometry with 2 lines and finally create a (2D) bounded face on the result.

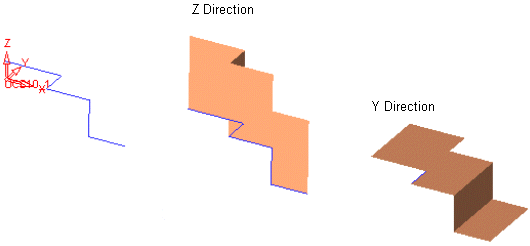

Line type curves from the 3D composite will be ignored and the remaining curves will be swept separately.
Detailed Interaction
See Options and Results.
|
