Automatic Magazine Numbers
Access: Open this function from one of the following locations:
The Cutters and Holders dialog (or the minimized version - the Select Only Mode):
-
When not editing or creating a procedure, select NC-Process > Cutters > Cutters from the menu bar or select Cutters
in the NC Guide Toolbar. -
While editing or creating a procedure, use one of the following methods (in both methods, the Select Only Mode is displayed):
-
In the Advanced Mode, click on the cutter name in the Procedure Parameter Table.
-
In the Wizard Mode, select the cutter button.
-
-
In the Process Manager, click on the cutter name in the procedure row (in this case, the Select Only Mode is displayed).
Automatically define the magazine numbers of a selected group of cutters in the Cutter Table of the currently active NC file.

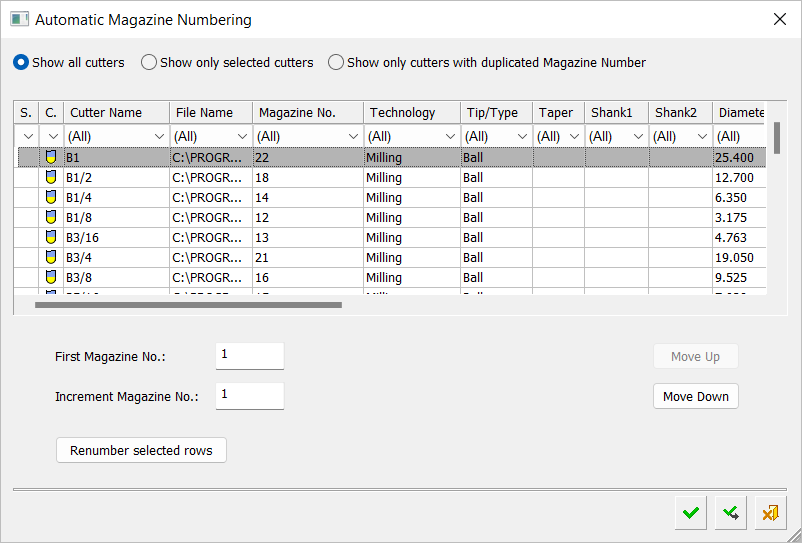

The Automatic Magazine Numbers dialog is displayed.
See Automatic Magazine Numbers dialog for a description of this dialog.
Automatically number the magazine numbers
-
OpenOpen the Cutters and Holders dialog.
-
Click the Automatic Magazine Numbers button
. The Automatic Magazine Numbers dialog is displayed. -
Set the dialog parameters as required to define the automatic magazine numbers of the selected cutter(s).
-
Click OK
to complete the task. The new magazine numbers of the selected cutter(s) are now added to the Cutter Table of the active NC file.
|
