Process Manager
: Cutters
Access: Open this function from one of the following locations:
For each of the following options, the Cutters & Holders Dialog is displayed (or the minimized version - the Select Only Mode), enabling you to select a different cutter (if more than one cutter has been defined).
-
In an active procedure (editing or creating a procedure) use one of the following methods:
-
In the Advanced Mode, press the cutter name in the Cutters & Holders branch of the parameters table.
-

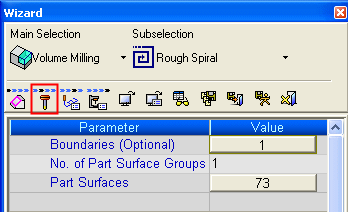

In the Wizard Mode, press the Cutter button.
-
-
Invoke the Process Manager, select the required row(s) and then use one of the following methods:
-
To change a single cutter: Click a cutter to change it.
-
To change single or multiple cutters:
-
Select NC Edit > Change Parameters > Change Cutter from the menu bar. Change the required cutter(s) in the Process Manager.
-
Right-click the selected rows and select Change > Cutter from the popup menu. Change the required cutter(s).
-
Right-click in the Graphics Area and select Change > Cutter from the popup menu. Change the required cutter(s).
-
-
Change the cutter for selected procedure(s).
Changing a cutter for cutter motions can be easily done within the Process Manager. For each procedure a cutter name is displayed.
A cutter can be changed for single or multiple procedures.
Changing a single cutter
-

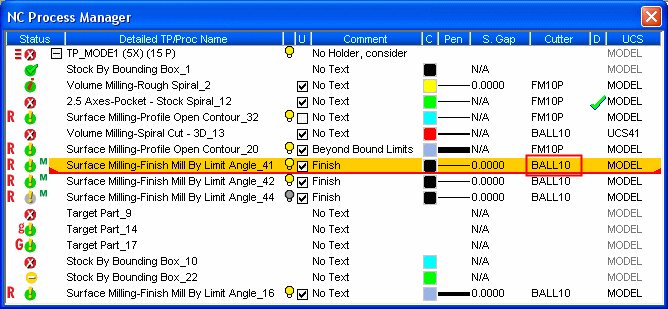

Select the appropriate procedure in the Process Manager.
-
InvokeInvoke the Change Cutter mode.
The Cutters and Holders dialog is displayed in the Select Only Mode. Change the cutter as required.
Note: If you edit or change the cutter of an executed procedure (a procedure with a
status flag in the Process Manager), an appropriate warning message is displayed prompting you to either continue or cancel the operation. If you continue, the procedure(s) using the edited/changed cutter will be considered suspended and receive a
status flag. In this case, you must execute the procedure again.

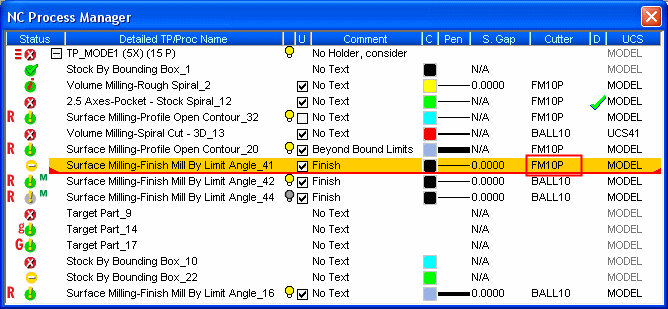

The new cutter is displayed.
Note that the previously executed procedure now has a suspended status flag and needs to be re-executed to receive a flag.
Changing multiple cutters
-

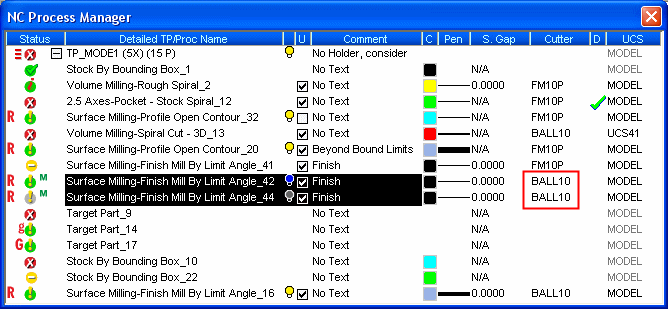

Select the appropriate procedures in the Process Manager.
-
InvokeInvoke the Change Cutter mode.
The Cutters and Holders dialog is displayed in the Select Only Mode. Change the cutter as required.
Note: If you edit or change the cutter of an executed procedure (a procedure with a status flag in the Process Manager), an appropriate warning message is displayed prompting you to either continue or cancel the operation. If you continue, the procedure(s) using the edited/changed cutter will be considered suspended and receive a status flag. In this case, you must execute the procedure again.

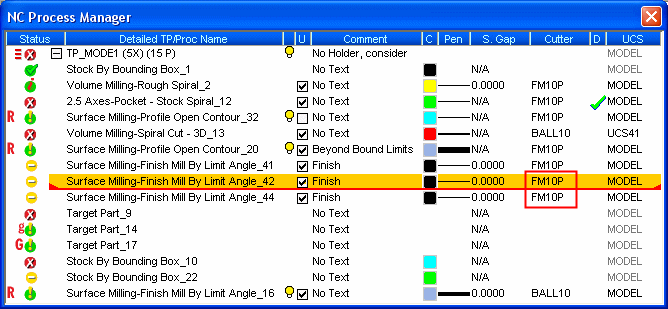

The new cutters are displayed. Note that the previously executed procedures now have a suspended status flag and need to be re-executed to receive a flag.
|
