Remachine - Legacy Procedures > Along Contour Vertical + All On Surface

Access:

  1. Create a procedure.

  2. For Technology, choose Remachine as the main selection, and Legacy Procedures > Along Contour Vertical + All On Surf. as the subselection.

Create alternating passes, tangent to the milling surface. This allows for true Climb or Conventional milling. In addition, approach and retract motions are surface tangent arcs, providing smooth approach and retract.
In Along Contour Vertical + All On Surface, all surfaces are milled on surface. In addition, the vertical areas are also milled in Constant Z down steps.

Hints and tips for Cleanup procedures

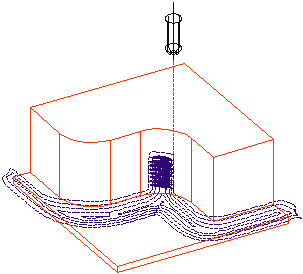

Illustration of Vertical + All On SurfaceIllustration of Vertical + All On Surface

How to create this procedure: (see Creating a Procedure for a general explanation.)

  1. For Technology, choose Remachine as the main selection, and Legacy Procedures > Along Contour Vertical + All On Surf. as the subselection.

  2. Choose the appropriate cutter.

  3. Define the contours, part surfaces, and check surfaces.

  4. Define the following Motion Parameters:

  5. Define the Machine Parameters.

  1. When finished, you can choose from the following Work Mode Dialog buttons:

    • Save & Close to suspend

    • Save & Calculate to execute

    • Save Original

    • Cancel

(These options are also available on the Procedure popup submenu.)

Notes:

  • To mill only vertical areas, using Constant Z down steps, choose the Remachine - Legacy Procedures > Only Vertical Area.

  • To automate the Cleanup procedure, choose Remachine sub selection Cleanup.
