Cutters & Holders Dialog
: Parameter Tabs
Access: Open this function from one of the following locations:
The Cutters and Holders dialog (or the minimized version - the Select Only Mode):
-
When not editing or creating a procedure, select NC-Process > Cutters > Cutters from the menu bar or select Cutters
in the NC Guide Toolbar. -
While editing or creating a procedure, use one of the following methods (in both methods, the Select Only Mode is displayed):
-
In the Advanced Mode, click on the cutter name in the Procedure Parameter Table.
-
In the Wizard Mode, select the cutter button.
-
-
In the Process Manager, click on the cutter name in the procedure row (in this case, the Select Only Mode is displayed).

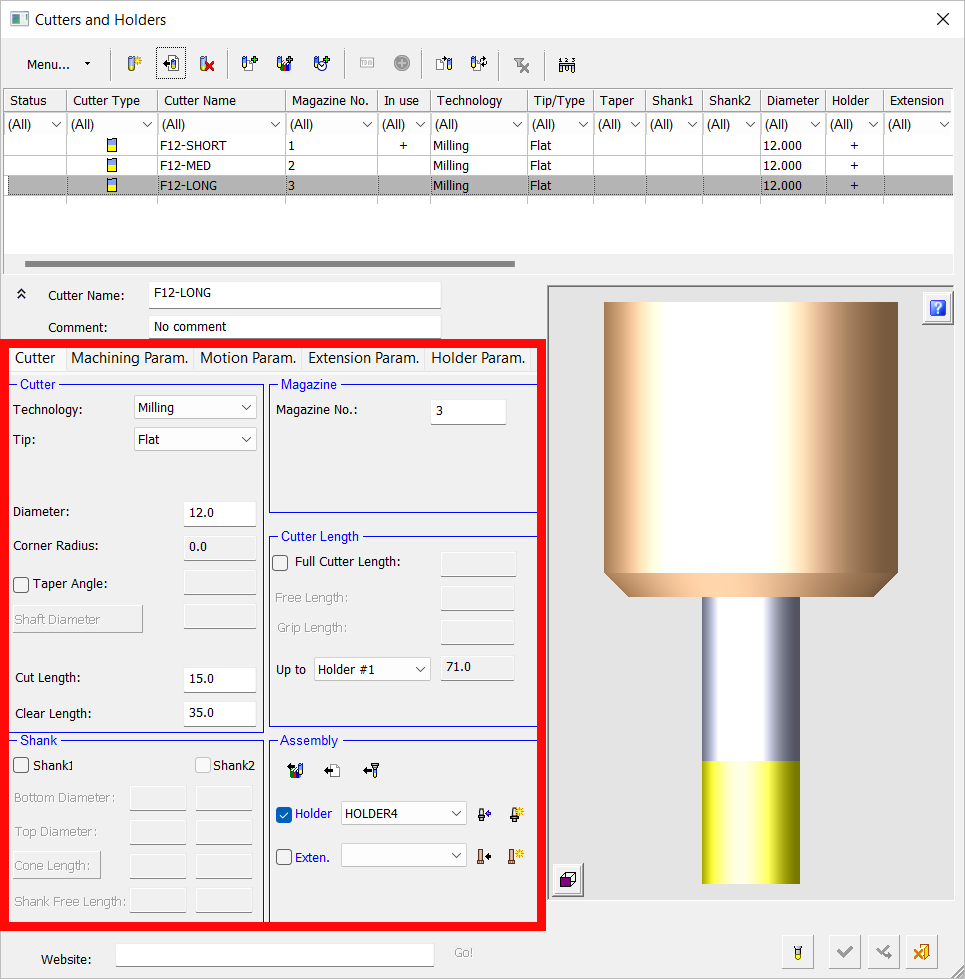

The Cutters and Holders dialog contains the following parameter tabs (located here in the dialog)(located here in the dialog):
|
An example cutter with a holder and multiple spindles. |
|
|
|
|
- Enter the cutter name and, if required, a comment.
While editing parameter values, the following system checks are conducted and associated prompts are displayed to ensure that the correct parameter values are entered:
-
When cutter parameter values are changed, the system checks whether the cutter(s) is used in a procedure(s) and whether the changes influence the procedure execution. If both conditions occur, a message is displayed informing you that all procedures that use this cutter(s) may be suspended if you approve the changes.
-
When editing a parameter value, any other parameter that may be affected by the edit is displayed with an orange background color.
-
Invalid parameter values are displayed in RED and signify that these values should be changed. If the Apply button is pressed while invalid parameter values appear in the dialog, a message is displayed with additional information regarding these parameters.
Example of invalid parameters displayed in REDExample of invalid parameters displayed in RED.
-
-
Decide whether to define a holder.
Define, edit and delete cutters. Cutters can also be loaded from the Cutter Library or imported from another file.
Set the machine parameter defaults for a specific cutter(s).
Set the motion parameter defaults for a specific cutter(s).
Set the cycle parameter defaults for a drill cutter(s).
Set the extension parameter defaults for a specific cutter(s).
Define, edit, and delete holders.
|
