Views
Access: A view is created under the currently active sheetactive sheet(either double-click the sheet name
in the Drawing Tree or right-click the sheet name and select Activate Sheet). The View Creation dialog can be accessed using one of the following methods:
-
Click
in the toolbar. -
Right-click the currently active Sheet item
in the Drawing Tree and select View Creation. -
Right-click the graphics area and select View Creation.
-
Select Views > View Creation > View Creation from the Drafting menu bar.
General

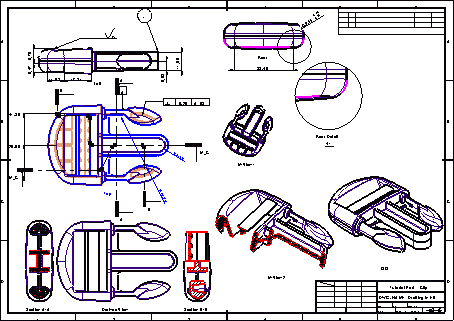

A View is the 2D projection of a model that maintains its associativity to the model. A change made to the part will be reflected in the View. A view is a projection of a Cimatron part file, assembly, or a converted Cimatron IT file and is created according to the active UCS.
|
|
Available views
Note: A view is created under the currently active sheetactive sheet(either double-click the sheet name in the Drawing Tree or right-click the sheet name and select Activate Sheet) in the Drawing Tree.
Available view operations
See also:
Notes: The following limitations apply to the importing of views:
-
BOM's, geometric tolerance, welds, polylines in DXF, and text from Cimatron IT 8 and earlier cannot be imported.
-
Surfaces imported from a Cimatron IT model will not be displayed.
-
Conversion of non-updated views produces an incorrect result.
|
